Welcome to our Waterco Swimming Pool Heat Pump Section

Waterco Swimming Pool Heat Pump Logo

Our Range of Canadian Built Waterco Heat Pumps

Waterco have been around since 1980. They're heat pump division came into being when they acquired the high efficiency heat pump manufacturer "Focus Temp" in 2005. Waterco have gone from strength to strength and have become a household name in Canada USA and a have growing presence in European on other international markets. For customers looking for an established name with a track record of quality and reliability with options to suit all possible scenario's then look no further than a superb Waterco Swimming Pool Heat Pump

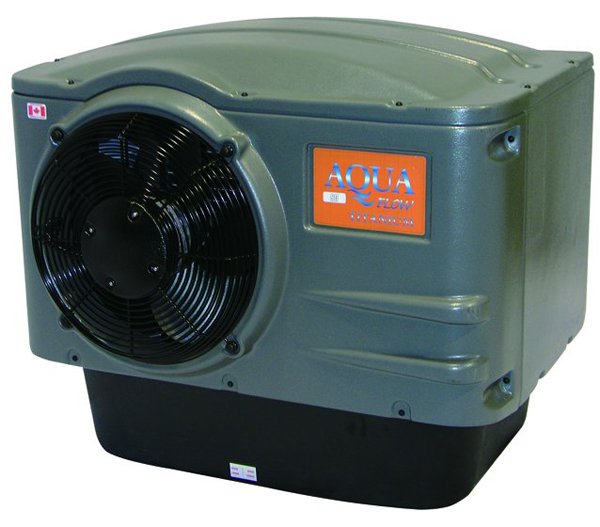

Waterco Aqua Flow Swimming Pool Heat Pump

A powerful and robust heat pump with a side mounted fan from Waterco

All Waterco products are made in Canada

Waterco Aqua Flow swimming pool heat pump

Featuring a side mounted fan and automated controls, the Waterco Aqua Flow 19Kw swimming pool heat pump also contains an environmentally friendly refrigerant and is cased in a durable, weather proof cabinet.

Resiliant, reliable and powerful, the Waterco Aqua Flow heat pump also features a hard wearing titanium heat exchanger and is offers outstandingly dependable performance for heating swimming pools.

Waterco Aqua Flow Swimming Pool Heat Pump Additional Features:

  • Powerful heat transfer
  • Scroll compressor
  • Robust weather proof ABS cabinet
  • Environmentally friendly refrigerant R410a

Waterco Aqua Flow swimming pool heat pump dimensions chart

Model

kW

Phase

A

B

C

Weight

Power Cons kW/hr

Avr. Running Amps

Type C Breaker Reqd

Aquaflow 65

19

1

920mm

610mm

860mm

89kg

3.7

21

C20

Aquaflow 80

23

1

920mm

610mm

860mm

89kg

4.5

18

C32

Aquaflow 80

23

3

920mm

610mm

860mm

89kg

4.5

18/3

C32



Waterco Aquaflow (kW)

BUY!

19

£

23

£

23 (Three Phase)

£

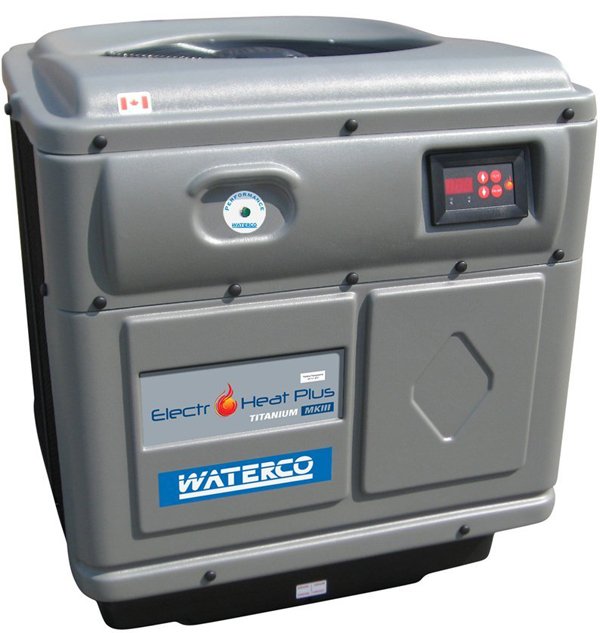

Waterco Electroheat Plus

An impressively capable heat pump with a top mounted fan from Waterco

Waterco heaters proudly made in Canada

Waterco Electro swimming pool heat pump

The Waterco Electroheat Plus heat pump is an impressive and steadfast model, reliably equipped to powerfully heat your swimming pool.

Featuring an envrionmentally friendly refrigerant, top mounted fan and automated controls, the Waterco Electroheat Plus is a dynamically engineered heat pump providing efficiency and assurance in heating the water of your pool.

Waterco Electroheat Plus Swimming Pool Heat Pump Additional Features:

  • Titanium heat exchanger
  • Powerful heat transfer
  • Scroll compressor
  • Robust weather proof ABS cabinet
  • Environmentally friendly refrigerant R410a



Waterco Electroheat Plus Swimming Pool Heat Pump dimensions

Waterco Electroheat Plus (kW)

Buy!

16 Kw

£

21 Kw

£

25 Kw

£

31 Kw

£

31Kw (Three Phase)

£

37 Kw(Three Phase)

£

44 Kw (Three Phase)

£



Model

kW

Phase

A

B

C

Weight

Power Cons kW/hr

Avr. Running Amps

Type C Breaker Reqd

Heat Plus 55

16

1

780mm

890mm

870mm

91kg

3

14

C20

Heat Plus 70

21

1

780mm

890mm

870mm

91kg

4

16

C32

Heat Plus 85

25

1

780mm

890mm

870mm

91kg

5

20

C32

Heat Plus 105

31

1

890mm

880mm

1120mm

107kg

6

24

C40



Heat Plus 105

31

3

890mm

880mm

1120mm

107kg

6

24/3

C32/3

Heat Plus 125

37

3

890mm

880mm

1120mm

149kg

7

28/3

C32/3

Heat Plus 150

44

3

890mm

880mm

1120mm

152kg

9

32/3

C32/3





Waterco ElectroHeat Sub Zero Heat Pump



Waterco ElectroHeat Sub Zero Heat Pump that extends your season

A dynamic, durable heat pump with top mounted fan from Waterco

Introducing the Waterco ElectroHeat Sub Zero heat pump, an innovative swimming pool heater that extends your Summer season!

The Waterco ElectroHeat Sub Zero heat pump comes with an integrated digital panel, flow switch (to turn off the unit when there's no water flow), and can operate to temperatures all the way down to 0℃ (although we generally recommend a minimum temperature of +5℃ for optimum performance!).

A weatherproof, solid cabinet and heat exchanger made of robust titanium (celebrated for it's endurance!) make the ElectroHeat Sub Zero Heat Pump a worhwhile purchase that should provide energy efficient and sustained high performances for a considerable time past purchase!

Waterco ElectroHeat Sub Zero Heat Pump Additional Features:

  • Automated controls
  • Powerful heat transfer
  • Scroll compressor
  • Robust weather proof ABS cabinet
  • Environmentally friendly refrigerant R410a



Waterco ElectroHeat Sub Zero Heat Pump sizing chart

Model

kW

Phase

A

B

C

Weight

Power Cons kW/hr

Avr. Running Amps

Type C Breaker Reqd

Sub Zero 55

16

1

890mm

750mm

870mm

98kg

3

14

C20

Sub Zero 75

22

1

940mm

890mm

990mm

98kg

4.5

17

C32





















Sub Zero 75

22

3

940mm

890mm

990mm

98kg

4.5

18/3

C25/3

Sub Zero 100

29

3

940mm

890mm

990mm

114kg

5.5

24/3

C25/3

Sub Zero 120

35

3

940mm

890mm

990mm

130kg

6.5

28/3

C25/3



Waterco Electroheat Sub Zero (kW)

Buy!

16

£

22

£

22 (Three Phase)

£

29 (Three Phase)

£

35 (Three Phase)

£



Accessories

Waterco Indoor Vent Kits

Waterco swimming pool heat pump indoor vent



Code

Indoor Vent Kits for

BUY!

68145-N

16-25kW Heat Plus

£

68146-N

31-44kW Heat Plus

£

68180-N

19-23kW Aquaflow

£



Condensation Drip Tray With Hose Connectors

Waterco heat pump drip tray



Code

Condensation Drip Tray & Hose Connectors for

BUY!

68170-N

Heat Plus

£

68171-N

Aquaflow

£



Waterco Winter Covers

Code

Winter Cover for

BUY!

68147-N

Heat Plus 16-25kw

£

68148-N

Heat Plus 31-44kw

£

68142-N

Aquaflow 19-23kw

£

Click here to view the Waterco Electroheat Brochure for everything you need to knowWaterco Electroheat Brochure

Waterco Sizing Chart

*Sizing chart based on 15-20 deg C ambient air temperature, 20 deg C water temperature and 62% relative humidity, no water table, average pool depth 1.5m(5ft) minimum running time 10 hrs per day. Sizing chart is an approximate guide only.

Minimum Size = Fairweather Swimming Optimum Size = 28+ deg C

Length ft

Width ft

Approx Gallons

Length M

Width M

Approx Litres

Min Size Heater kW

Optimum Size Heater kW

24

12

8550

7.32

3.66

38868

16

16

26

13

10034

7.92

3.96

45616

16

16

28

14

11638

8.53

4.27

52904

16

21/25

30

15

13359

9.14

4.57

60732

16

25/31

32

16

15200

9.75

4.88

69099

21

25/31

36

18

19238

10.97

5.49

87454

25

31

40

20

23750

12.19

6.10

107968

31

31/36



All Waterco swimming pool heater pumps have the following features:

Scroll Compressor

Scroll Compressor within all swimming pool heat pumps

The Scroll Compressor is the only thing that is powered in the heat pump, with the exception of the fan. This compressor is the most powerful on the market and has been designed to also be the quietest.

Titanium Heat Exchanger

Titanium Heat Exchangers are built inside all the Waterco swimming pool heater systems

Basically, whilst other stainless steel heat exchanges might corrode over time, a titanium one never will. A veritable super substance, once it's yours, it's yours for life!

Automated Controls

Simply set the water temperature and leave the heat pump to do it's thing!

Protection devices have also been built into the heater for ease of use, including auto defrost to eliminate frost from the evaporator in the cold and a switch to shut the heater down in low or no water flow conditions to prevent overheat damage (as well as shutting down if the pressure is too high). The compressor is protected by a time delay so the refrigerant pressure can equalise.



Waterco Swimming Pool Heat Pump money chart

Heat pumps essentially work by taking the air via the large fan on the top or the side, extracting and then compressing any heat in the atmosphere from there and then transferring this into the water through a heat exchanger and thus heating your pool! So, basically it's like a reverse air conditioner but for water.

Easy to install

Diagram of a typical waterco swimming pool heat pump layout
